SY6105 樣品申請
概述

The SY6105 is a 1.04A highly integrated single cell linear battery charger IC with power path management for wearable and IoT devices using Li-ion/Li-Polymer batteries. The I2C serial interface with charging and system setting can be allowed to be controlled flexibly.
The SY6105 can automatically complete charger phase include pre-charge, fast charge, charge termination. Also monitor battery temperature during charging. Power path management will provide higher priority system load even with depleted battery.
The device owns full system reset, include watchdog and PWRKEY reset, also supports ship mode to save power consumption.
The SY6105 is available in a 1.45x1.45mm, 9-ball / 0.5-pitch CSP package and DFN2x3-8L package.

產品特性

Linear Single Cell Battery Charger: ±0.5% charger voltage regulation@25℃; 28V maximum input;  voltage rating; Low to 1mA terminal current with 2mA step; Pre charge current supports quadruple setting; ITERM supports supports double setting; Max charging current reach to 1.04A linear charger; Default 4.65V system voltage regulation, max to 4.85V; Support safety timer during charging; Support battery NTC detection

Power Path Management: Max to 1.2A IINDPM; Default 4.6V VINDPM;  Support Supplement mode from battery during DPM happens; Support PWRKEY and COLD Reset

I2C interface configure function options

Full charging and fault status indication and report to host via INT

Full device protection，include OVP / OCP / SCP / OTP

Support Ship mode: Low to 300nA current; Configurable BATFET_DIS delay time; Configurable time and action to wake up from ship mode

Safety-related certification：IEC62368 CB certification; CQC: GB4943.1-2022

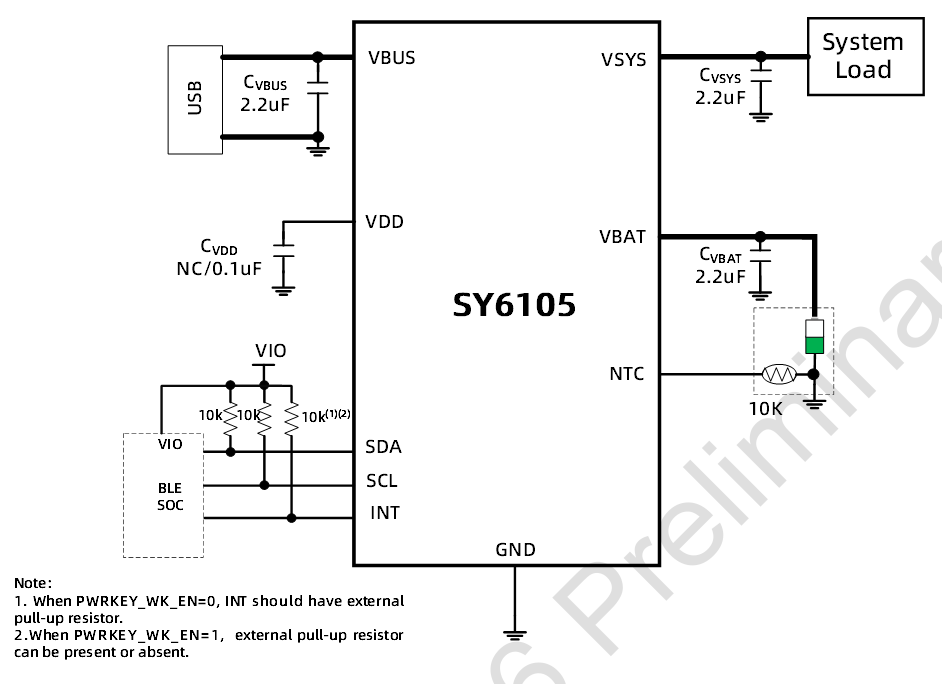

產品參考應用圖
應用
IoT device

Smart watches

BT headsets/TWS earbuds
